Details:

Voxan Roadster 2006 motorcycles specifications
read comments (-) | add comments
Year  2006
Category  Naked bike
Type  996 cc, air cooled, v-twin, 4-stroke
Bore x stroke (mm)  98 mm x 66 mm
Compression ratio  10.5:1
Valves  DOHC, 4 valves per cylinder
Fuel system  Sequential-phase electronic fuel injection by Magnetti Marelli - 1 injector per cylinder
Ignition  -
Power  100 hp (74.6 kW) @ 8000 rpm
Torque  103 Nm (76 ft. lbs) @ 6500 rpm
Lubrication system  With oil by dry casing, oil tank in the body
Clutch  Multidisk oil, hydraulic drives
Gearbox  6 speed
Ratios  1e 15/41 2.733 38, 2nd 19/39 2.053 50.6, 3th 21/34 1.619 63.4, 4th 24/32 1.333 76.4, 5th 26/30 1.154 89.1, 6th 28/29 1.036 100
Primary drive  1.1811 (37/67)
Final drive  Chain, 18*39
Starting system  Electronic
Frame  Double tube - Front and back molded and assembled with screws
Front suspension  Ø 43 mm inverted fork, hydraulic and adjustable compression, 120 mm travel
Rear suspension  Adjustable shocks;Aluminium arms. Tumbler and rods system. , 120 mm travel
Rake / Traill  -
Wheels  -
Front whell  -
Rear whell  -
Front tyre  120/70-17
Back tyre  180/55-17
Front brakes  dual 320 mm discs with 4-piston calipers
Rear brakes  single 245 mm disc with 2-piston calipers
Overall length  2110 mm (83.1 inches)
Overall width  740 mm (29.1 inches)
Overall height  -
Seat height  810 mm (31.9 inches)
Wheelbase  1475 mm (58.1 inches)
Ground clearance  159 mm (6.3 inches)
Fuel capacity - reserve  18.5 l (4.9 gallon US)
Dry weight  185 kg (407.9 pounds)
go to top
Voxan

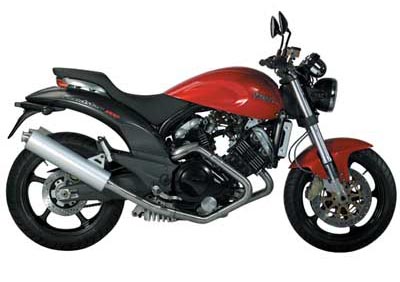

Voxan Roadster 2006+Enlarge Image
