Voxan Black Magic 2005 motorcycles specifications
read comments (-) | add comments
Year  2005
Category  Sport
Type  996 cc, liquid cooled, 72° v-twin, 4-stroke
Bore x stroke (mm)  98 mm x 66 mm
Compression ratio  10.5:1
Valves  DOHC, 4 valves per cylinder
Fuel system  Electronic fuel injection by Magnetti Marelli
Ignition  Electronic
Power  100 hp (74.6 kW) @ 9000 rpm
Torque  103 Nm (76 ft. lbs) @ 6500 rpm
Lubrication system  With oil by dry casing, oil tank in the body
Clutch  Multidisk oil with hydraulic control
Gearbox  6 speed
Ratios  1e 2.733 (15/41), 2nd 2.053 (19/39), 3th 1.619 (21/34), 4th 1.333 (24/32), 5th 1.154 (26/30), 6th 1.036 (28/29)
Primary drive  1.1811 (37/67)
Final drive  Chain, 18*39
Starting system  Electronic
Frame  Double tube - Front and back molded and assembled with screws
Front suspension  Paioli inverted fork -Ø 43 mm;hydraulic and adjustable compression. , 120 mm travel
Rear suspension  Adjustable Paioli shocks - Aluminium arms, 120 mm travel
Rake / Traill  -
Wheels  -
Front whell  -
Rear whell  -
Front tyre  120/70-17
Back tyre  180/55-17
Front brakes  dual 320 mm discs with 2-piston calipers
Rear brakes  single 245 mm disc with 2-piston calipers
Overall length  2100 mm (82.7 inches)
Overall width  740 mm (29.1 inches)
Overall height  -
Seat height  810 mm (31.9 inches)
Wheelbase  1475 mm (58.1 inches)
Ground clearance  -
Fuel capacity - reserve  18.5 l (4.9 gallon US) - 4 l (1.1 gallon US)
Dry weight  185 kg (407.9 pounds)
go to top
Voxan

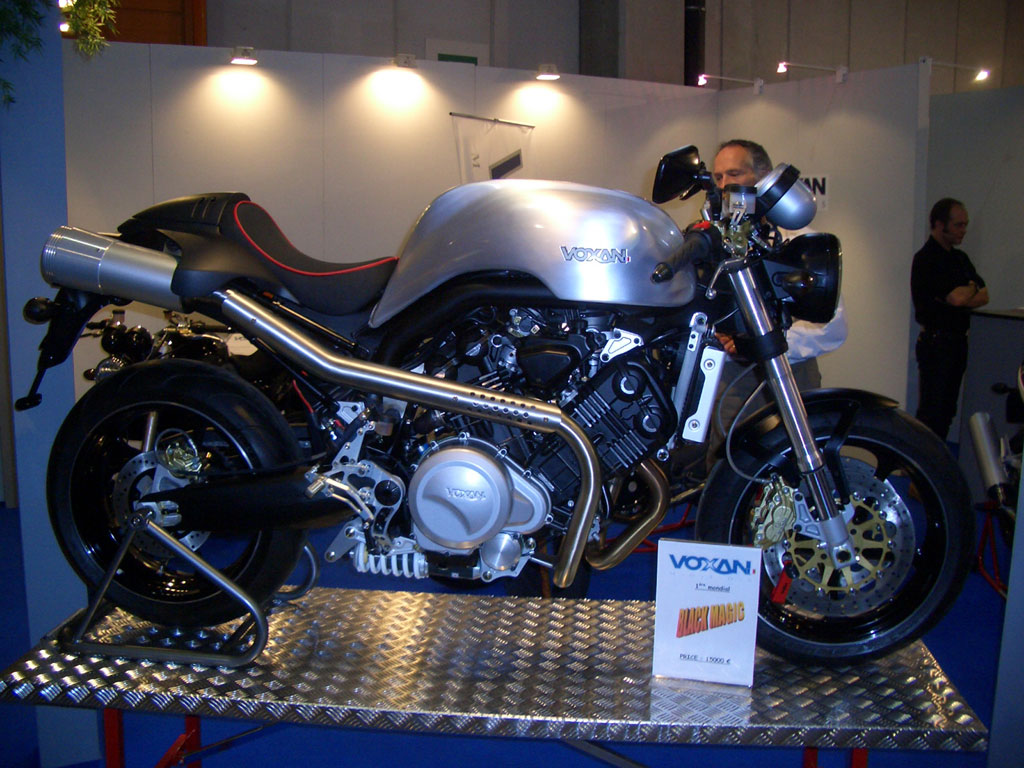

Voxan Black Magic 2005+Enlarge Image
