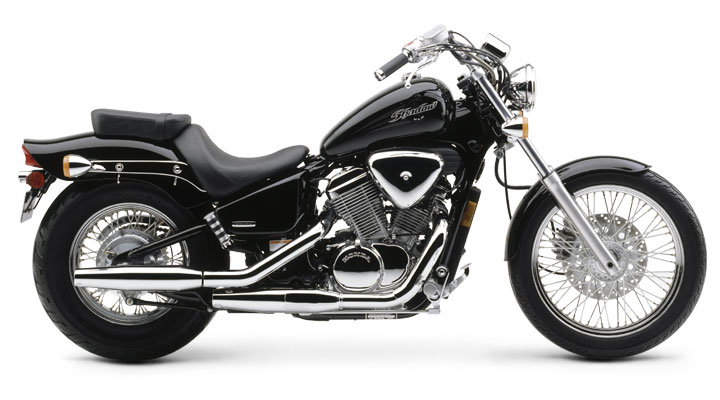

Honda VT 600 CD Shadow 2003 motorcycles specifications

add to favorites

Year : 2003 , Category : Cruiser , Type : 583 cc, water cooled, 52Â° v-twin, 4-stroke , Bore x stroke (mm) : 75 mm x 66 mm ,

Details:

Honda VT 600 CD Shadow 2003 motorcycles specifications
read comments (-)	\|	add comments

Year

2003

Category

Cruiser

Type

583 cc, water cooled, 52Â° v-twin, 4-stroke

Bore x stroke (mm)

75 mm x 66 mm

Compression ratio

9.2:1

Valves

SOHC, 3 valves per cylinder

Fuel system

Single 34mm diaphragm-type CV

Ignition

CD with electronic advance, two spark plugs per cylinder

Power

39 hp (29.1 kW) @ 6500 rpm

Torque

48.9 Nm (36.1 ft. lbs) @ 3500 rpm

Lubrication system

Clutch

Gearbox

4 speed

Ratios

Primary drive

Final drive

Chain

Starting system

Electronic

Frame

Front suspension

39 mm telescopic forks, 145 mm travel

Rear suspension

Single-shock with seven-position spring-preload adjustability, 89 mm travel

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

100/90-19

Back tyre

170/80-15

Front brakes

single 296 mm disc with 2-piston calipers

Rear brakes

160 mm drum

Overall length

Overall width

Overall height

Seat height

690 mm (27.2 inches)

Wheelbase

1600 mm (63 inches)

Ground clearance

Fuel capacity - reserve

11 l (2.9 gallon US) - 3,4 l (0.9 gallon US)

Dry weight

200 kg (440.9 pounds)
