Harley-Davidson XL 1200 C Sportster Custom 2004 motorcycles specifications

add to favorites

Year : 2004 , Category : Cruiser , Type : 1202 cc, air cooled, v-twin, 4-stroke , Bore x stroke (mm) : 88.8 mm x 96.8 mm ,

Details:

Harley-Davidson XL 1200 C Sportster Custom 2004 motorcycles specifications
read comments (-)	\|	add comments

Year

2004

Category

Cruiser

Type

1202 cc, air cooled, v-twin, 4-stroke

Bore x stroke (mm)

88.8 mm x 96.8 mm

Compression ratio

10:1

Valves

2 valves per cylinder

Fuel system

Carburator

Ignition

Power

70 hp (52.2 kW) @ 6000 rpm

Torque

93 Nm (68.6 ft. lbs) @ 3300 rpm

Lubrication system

Clutch

Gearbox

5 speed

Ratios

1e 9.14, 2nd 6.28, 3th 4.878, 4th 4.01, 5th 3.40

Primary drive

Final drive

Belt

Starting system

Electronic

Frame

Front suspension

Rear suspension

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

90/90-21

Back tyre

150/80-16

Front brakes

single 292 mm disc with 4-piston calipers

Rear brakes

single 292 mm disc with 2-piston calipers

Overall length

2275 mm (89.6 inches)

Overall width

Overall height

Seat height

668 mm (26.3 inches)

Wheelbase

1520 mm (59.8 inches)

Ground clearance

112 mm (4.4 inches)

Fuel capacity - reserve

17 l (4.5 gallon US)

Dry weight

255 kg (562.2 pounds)

go to top

Harley-DavidsonSo far, nothing for that!

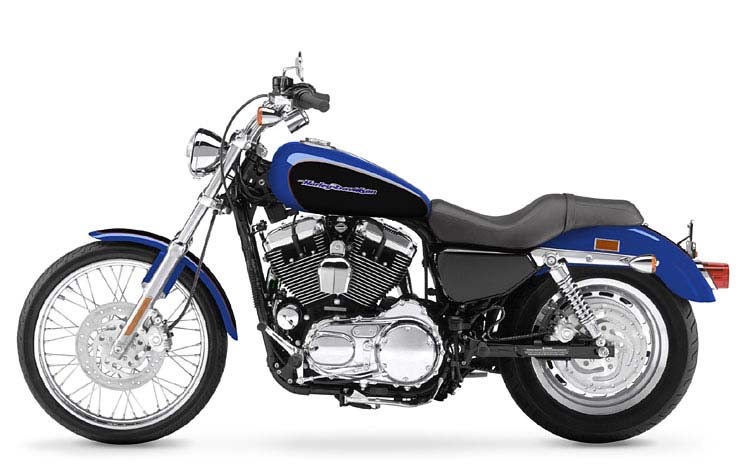

Harley-Davidson XL 1200 C Sportster Custom 2004
