Harley-Davidson FXSTS - FXSTSI Springer Softail 2004 motorcycles specifications

add to favorites

Year : 2004 , Category : Cruiser , Type : 1449 cc, air cooled, v-twin, 4-stroke , Bore x stroke (mm) : 95.3 mm x 101.6 mm ,

Details:

Harley-Davidson FXSTS - FXSTSI Springer Softail 2004 motorcycles specifications
read comments (-)	\|	add comments

Year

2004

Category

Cruiser

Type

1449 cc, air cooled, v-twin, 4-stroke

Bore x stroke (mm)

95.3 mm x 101.6 mm

Compression ratio

8.8:1

Valves

2 valves per cylinder

Fuel system

Carburetor or Electronic Sequential Port Fuel Injection (ESPFI )

Ignition

Power

63 hp (47 kW) @ 5300 rpm

Torque

102 Nm (75.2 ft. lbs) @ 3500 rpm

Lubrication system

Clutch

Gearbox

5 speed

Ratios

1e 10.11, 2nd 6.96, 3th 4.95, 4th 3.87, 5th 3.15

Primary drive

Final drive

Belt

Starting system

Electronic

Frame

Front suspension

Chrome, leading-link `Springer` style, 142 mm travel

Rear suspension

hidden, horizontal-mounted, coil-over shocks, 110 mm travel

Rake / Traill

Wheels

Front whell

Rear whell

Front tyre

MH90-21

Back tyre

150/80-16

Front brakes

single 292 mm disc with 2-piston calipers

Rear brakes

single 292 mm disc with 2-piston calipers

Overall length

2375 mm (93.5 inches)

Overall width

Overall height

Seat height

640 mm (25.2 inches)

Wheelbase

1660 mm (65.4 inches)

Ground clearance

137 mm (5.4 inches)

Fuel capacity - reserve

18.9 l (5 gallon US)

Dry weight

302 kg (665.8 pounds)

go to top

Harley-DavidsonSo far, nothing for that!

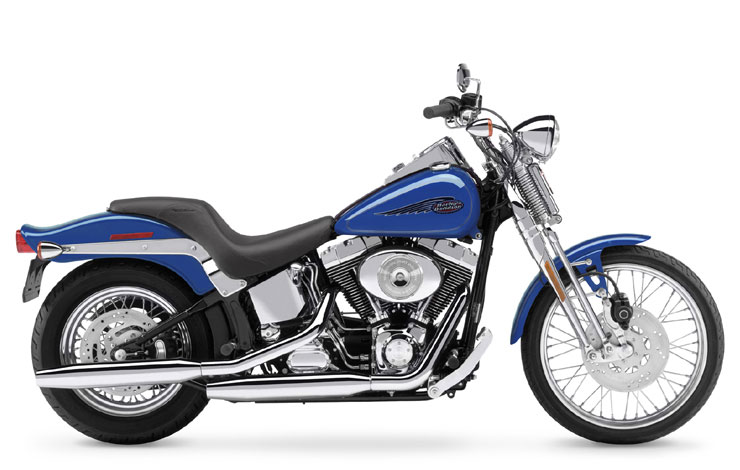

Harley-Davidson FXSTS - FXSTSI Springer Softail 2004
