Details:

Beta Alp 4T 200 2002 motorcycles specifications
read comments (-) | add comments
Year  2002
Category  Trial
Type  199 cc, air cooled, single cylinder, 4-stroke
Bore x stroke (mm)
Compression ratio  9.4:1
Valves  SOHC, 2 valves per cylinder
Fuel system  Mikuni BST 31
Ignition  Electronic
Power  15 hp (11.2 kW) @ 7750 rpm
Torque  -
Lubrication system  forced lubrication with pump
Clutch  Multiple disc clutch in oil bath
Gearbox  5 speed
Ratios  -
Primary drive  19/60
Final drive  Chain
Starting system  Electronic & Kick
Frame  Iron double closed cradle
Front suspension  Hydraulic fork, 38 mm tubes, 170 mm travel
Rear suspension  single shock with adjustable spring, 180 mm travel
Rake / Traill
Wheels  -
Front whell  -
Rear whell  -
Front tyre  90/90-21
Back tyre  120/80-18
Front brakes  single 220 mm disc with 2-piston calipers
Rear brakes  single 200 mm disc with 1-piston calipers
Overall length  2150 mm (84.6 inches)
Overall width  820 mm (32.3 inches)
Overall height  1170 mm (46.1 inches)
Seat height  830 mm (32.7 inches)
Wheelbase  1350 mm (53.1 inches)
Ground clearance  280 mm (11 inches)
Fuel capacity - reserve
Dry weight  103 kg (227.1 pounds)
go to top
Beta

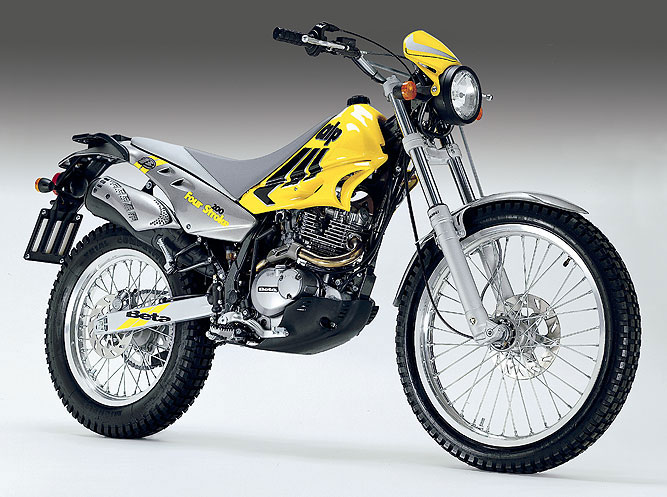

Beta Alp 4T 200 2002+Enlarge Image
